Spirolyser® Q13®

The Spirolyser® Q13® is a computerised spirometer using single-use Fleisch-type Qflow® sensors. Combined with SpiroWin® software, it enables the main spirometry examinations to be performed and analysed in just a few minutes.

More informationAsk for a quote

A breath of fresh air,
the Spirolyser® Q13®

The patented Qflow® sensor, single-use Fleisch-type, offers reproducible and precise results.

The "No Contact No Risk" concept: no calibration, no disinfection, limited cross-contamination.

The integrated ambient condition sensor automatically measures temperature, pressure and humidity.

Compliant with ATS 2019 and ERS/ATS 2021 recommendations.

Wide choice of predicted values and Z-scores, including GLI Race-neutral.

Incentive animations to guide the patient during the test.

Concept
“NO CONTACT NO RISK”.

No disinfection, no calibration, no cross-contamination.

Software

SpiroWin®

Predicted-value reference sets and Z-scores: GLI Race-neutral, GLI, Knudson, ECCS, Zapletal, Polgar, ITS, NHANES III and Dejsomritrutai 2000.

Comparison of examinations over time to monitor changes in results.

Interoperability with various Electronic Medical Record (EMR) systems to transfer results without re-entering data.

Customisable PDF reports.

Device verification at three flow levels, with verification history tracking.

Tests

Slow Vital Capacity (VC)
Forced Vital Capacity (FVC) / Post-medication
Maximal Voluntary Ventilation (MVV)

Others
strengths

  • Compact and lightweight: only 250 g
  • Plug & Play: USB 2.0 connection
  • Cable length: 3 m
  • Flow measurement range: -14 to +14 L/s
  • Volume measurement range: 0 to 10 L
  • Digital resolution: 16 bits
  • Measurement accuracy: ± 2.5% maximum
  • Automatic zero-flow check before each examination
  • Can be used with or without an Ergofilter® SP1® / SP1M® filter
  • Warranty: 2 years
  • Medical device: Class Iia
  • Intended for healthcare professionals

What our customers are saying

The Spirolyser® Q13® is intended, among other things, for Occupational Health and Preventive Medicine

Options

Qflow®

Buy

Nose-clip

Buy

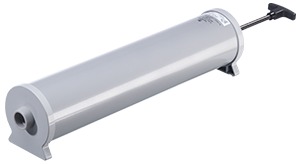

Syringe
Calibration

Buy

Bag
Travel

Buy

Breathless?

Please consult our

FAQ
